What is Clear PVC Hose?
Clear PVC Hose is a pvc tubing supplied by Sunhose for Water transfer, Laboratory tubing, Cable sleeve.
- Material / Category
- PVC Tubing
- Typical applications
- Water transfer, Laboratory tubing, Cable sleeve
- Buyer checks
- Diameter, working pressure, temperature, length, quantity and destination market.
Clear PVC Hose Sourcing Notes
Transparent flexible PVC tubing for visible flow transfer of water, air, and compatible liquids. Available in different sizes, wall thicknesses, and roll lengths for general-purpose use.
This page is prepared for hose importers, distributors, and project buyers who need to compare pvc tubing options before requesting a quotation.
Typical selection points include application, working pressure, hose diameter, roll length, color, packing, and destination port. Common application references include Water transfer, Laboratory tubing, Cable sleeve. Key product considerations include Crystal clear PVC, Soft and flexible, Low odor material options.
Clear PVC Hose
Clear PVC Hose, transparent hose pipe always conveying many liquids and gases. Also used as suds pipes and protection of metal tubes, wooden dowelling, and yacht rigging. Clear PVC hose makes it easier to view the liquid inside the tubes, which can prevent kinks and the incorrect transfer of liquids through certain lines. Suitable for food, medical and contact applications.Clear PVC hose piping provides a versatile, cost-effective alternative for many piping applications, particularly those where visual monitoring is critical.
Alias: Flexible Clear PVC Hoses, Flexible Transparent PVC Tubing, Clear PVC plastic tubing, Clear Vinyl PVC tubing, Transparent pipeline, clear flexible tubing.
A clear PVC hose is a type of hose made from transparent PVC (polyvinyl chloride) material. It is designed to provide visibility and easy monitoring of the contents or flow passing through the hose. The clear nature of the hose allows users to visually inspect and track the movement of liquids, gases, or other materials.
- Tube: Very Flexible And Smooth Transparent Plasticized PVC.
- Reinforcement: Without Textile.
- Cover: Abrasion, Ozone, And Weather Resistant Transparent PVC.
- Application: Drain lines. Light vacuum lines. Sight gauges. Low-pressure air and water.
- Temp. Range. : – 5 ̊C to +60 ̊C (23°F to 140°F)
Specification of Clear PVC Hose & Transparent Hose
Clear Vinyl Tubing manufactured with non-toxic material. Can be used for flexible lines for low-pressure air, water, liquids, beverages, chemicals, and gases as well as drain lines for air conditioners and dehumidifiers. Excellent resistance to mild acids and chemicals. See-through design allows for visual flow. Not for use with ice makers or petroleum-based products. Clear vinyl tubing is a type of tubing made from transparent PVC (polyvinyl chloride) material. It is commonly used for a wide range of applications where visibility of the contents or flow is important. The clear nature of the tubing allows for easy monitoring and inspection of liquids or materials passing through it.
| Part No. | Size | I.D. | O.D. | Length | W.P. | B.P. | Weight |
|---|---|---|---|---|---|---|---|
| # | Inch | mm | mm | m/coil | Bar | Bar | kg/m |
| SHC0507 | 3/16″ | 5 | 7 | 100 | 2 | 6 | 0.03 |
| SHC0608 | 1/4″ | 6 | 8 | 100 | 1.5 | 5 | 0.03 |
| SHC0810 | 5/16″ | 8 | 10 | 100 | 1.5 | 5 | 0.04 |
| SHC1012 | 3/8″ | 10 | 12 | 100 | 1.5 | 4 | 0.05 |
| SHC1215 | 1/2″ | 12 | 15 | 50 | 1.5 | 4 | 0.09 |
| SHC1518 | 5/8″ | 15 | 18 | 50 | 1 | 3 | 0.10 |
| SHC1922 | 3/4″ | 19 | 22 | 50 | 1 | 3 | 0.13 |
| SHC2530 | 1“ | 25 | 30 | 50 | 1 | 3 | 0.29 |
| SHC3238 | 1-1/4″ | 32 | 38 | 40 | 1 | 3 | 0.45 |
| SHC3844 | 1-1/2″ | 38 | 44 | 40 | 1 | 3 | 0.52 |
| SHC5058 | 2″ | 50 | 58 | 40 | 1 | 2.5 | 0.92 |

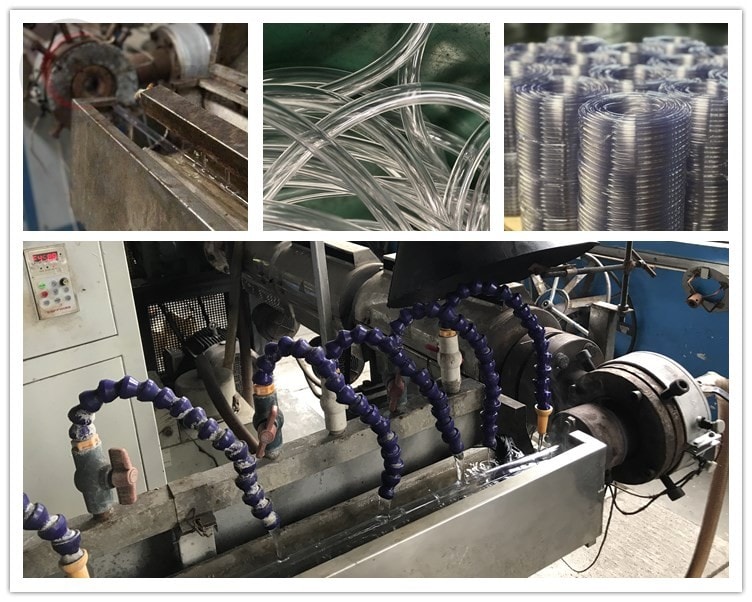

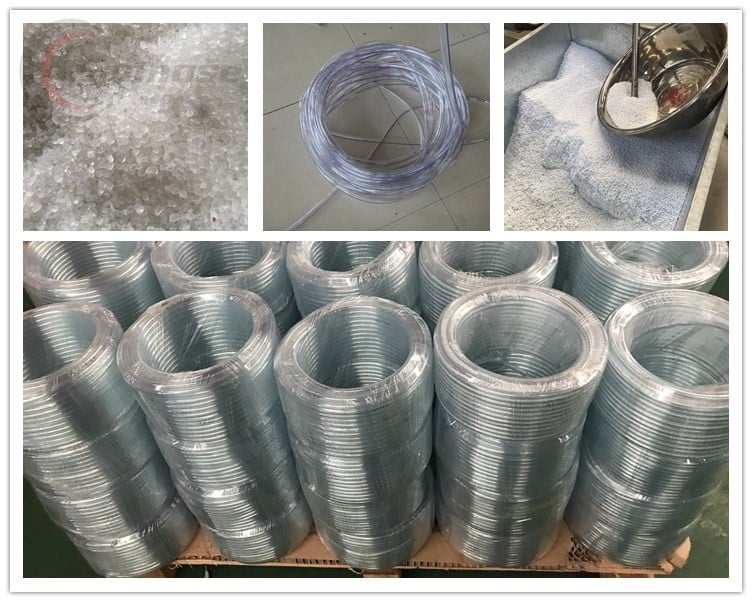

Material and Production of Clear PVC Hose & Transparent Hose

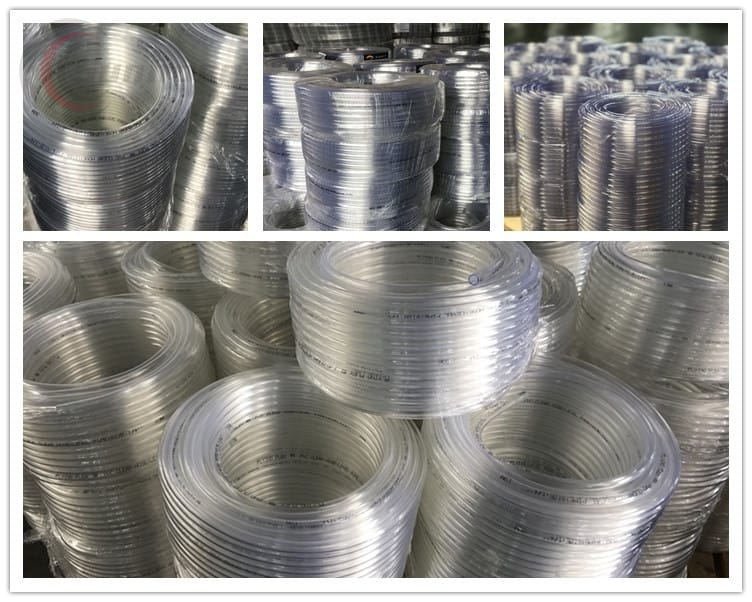

Package Style of Clear PVC Hose & Transparent Hose
