Polypropylene camlock fittings (or cam and groove couplings) are made from polypropylene reinforced with acid-resistant fiberglass, which makes PP Camlock coupling has excellent tolerance to most corrosive acids, bases, fertilizers, solvents, and wastewater. The black polypropylene camlock hose fitting is the best-priced lightweight cam and groove coupling available. Ideal for use in conditions where it is constantly subject to moisture. They are typically used in low-pressure suction or discharge hoses of firefighting pumps, IBC (intermediate Bulk Container) containers, and other applications that need quick connect or disconnect operations. It is widely used in inhalation/discharge hoses for agricultural or industrial applications.
All polypropylene cam & groove fittings are NOT for use with compressed air or gases. Polypropylene dust caps and plugs should not be used in pressure applications.
The working pressure below is measured at ambient temperature. When temperature increases, the operating pressure for polypropylene will decrease sharply.

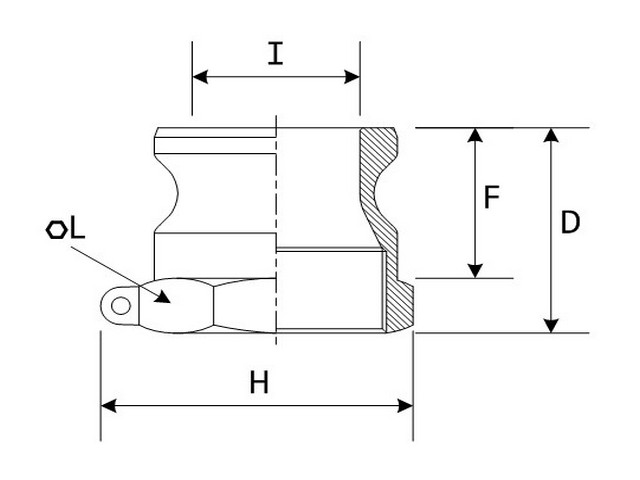

PP camlock coupling type A
Body materials: Polypropylene
Gaskets： Buna-N (NBR), EPDM
The thread of Camlock fittings are BSP, BSPT, NPT
SIZE：1/2″to 4″
Pressure:50-100 Psi( depending on size and temperature)
Operating temperature:-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method： Injection molding
The use and connection way of cam and groove couplings: Type A Camlock can usually be used with type D, type C, type B, and type DC (Dust Cap) of the same size. To make a connection, simply slide the Camlock adapter into the Camlock coupling, and with normal hand pressure, press the cam levers down.
- Lightweight, convenient;
- Good chemical resistance;
- Economical option;
- Disconnect/connect without tools;
Industries: chemical, paint, agriculture, municipal, sewage.
Applications: chemicals, solvents, varnishes, inks, fertilizers, wastewater.
| Size | D | F | H | I |
|---|---|---|---|---|
| (inch) | (mm) | (mm) | (mm) | (mm) |
| 1/2“ | 47.5 | 36.5 | 41.5 | 21.5 |
| 3/4“ | 47.5 | 36.5 | 42 | 21.5 |
| 1“ | 56 | 44.5 | 49.5 | 23.2 |
| 1-1/4“ | 64 | 50 | 67 | 29 |
| 1-1/2“ | 68 | 55 | 69 | 36.7 |
| 2“ | 76.5 | 62 | 87.5 | 44.5 |
| 3“ | 83 | 66.5 | 120.5 | 73 |
| 4″ | 91 | 54 | 145 | 90 |

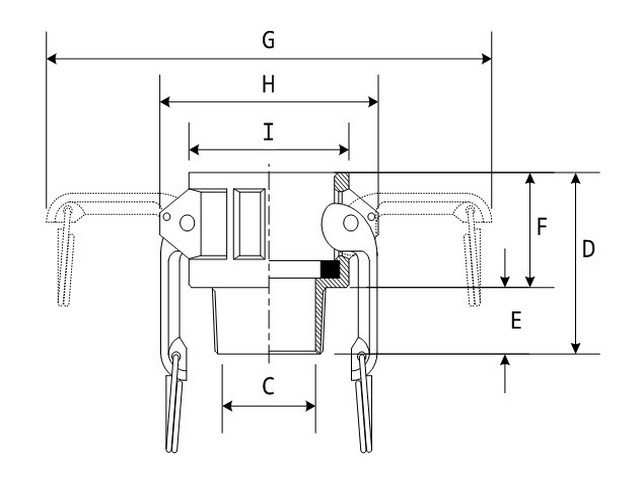

PP camlock coupling type B
Body materials: Polypropylene
Handle: stainless steel
Gaskets： Buna-N (NBR), EPDM
The thread of Camlock fittings are BSP, BSPT, NPT
SIZE：1/2″to 4″
Pressure:50-100 Psi( depending on size and temperature)
Operating temperature:-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method： Injection molding
The use and connection way of cam and groove couplings: Type B camlock can usually be used with the same size type A, type F, type E, type DP（ Dust Plug ）. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
| Size | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 1/2“ | 47.5 | 36.5 | 41.5 | 34 | 110 | 61 | 41.5 |
| 3/4“ | 47.5 | 36.5 | 42 | 34 | 110 | 61 | 41.5 |
| 1“ | 56 | 44.5 | 49.5 | 41 | 121 | 70 | 48 |
| 1-1/4“ | 64 | 50 | 67 | 49 | 181 | 86 | 69 |
| 1-1/2“ | 68 | 55 | 69 | 49 | 181 | 89 | 69 |
| 2“ | 76.5 | 62 | 87.5 | 54 | 190 | 98 | 81 |
| 3“ | 83 | 66.5 | 120.5 | 58 | 241 | 133 | 110 |
| 4″ | 91 | 54 | 145 | 59 | 273 | 159 | 142 |

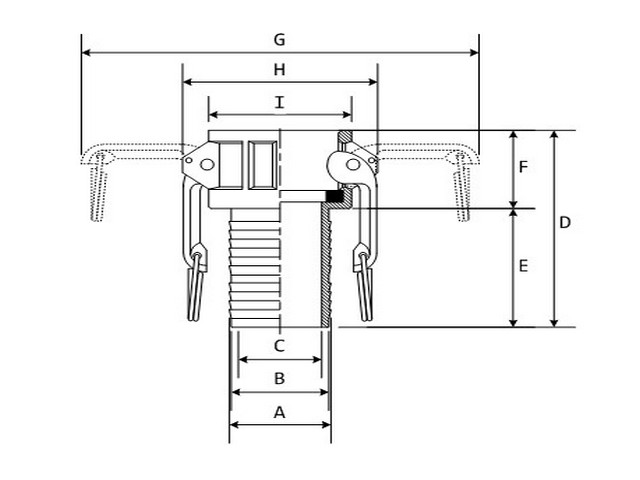

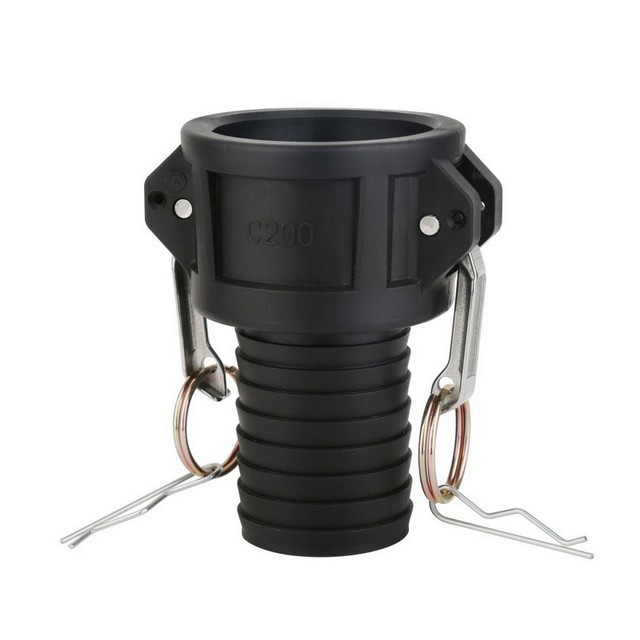

PP camlock coupling type C
Body materials: Polypropylene
Handle: stainless steel
Gaskets： Buna-N (NBR), EPDM
The thread of Camlock fittings are BSP, BSPT, NPT
SIZE：1/2″to 4″
Pressure:50-100 Psi( depending on size and temperature)
Operating temperature:-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method： Injection molding
The use and connection way of cam and groove couplings: Type C camlock can usually be used with the same size type A, type F, type E, type DP（ Dust Plug ）. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
| Size | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 1/2“ | 15 | 3.5 | 8 | 78 | 44 | 34 | 110 | 60.5 | 41 |
| 3/4“ | 21 | 4 | 13.5 | 88 | 53.7 | 34 | 110 | 60 | 41 |
| 1“ | 26.2 | 3.4 | 20 | 95.5 | 54 | 41 | 130 | 68 | 47 |
| 1-1/4“ | 33 | 4.5 | 25 | 102 | 52.5 | 50 | 181 | 67 | 67 |
| 1-1/2“ | 39.5 | 5.3 | 29.5 | 106.5 | 57 | 50 | 181 | 86 | 69 |
| 2“ | 52 | 6 | 41 | 125 | 69 | 55.5 | 191 | 98 | 81 |
| 3“ | 78 | 7.5 | 63.5 | 145.5 | 88 | 59 | 241 | 133 | 110 |
| 4″ | 100 | 9 | 84 | 175 | 118 | 58 | 273 | 159 | 142 |

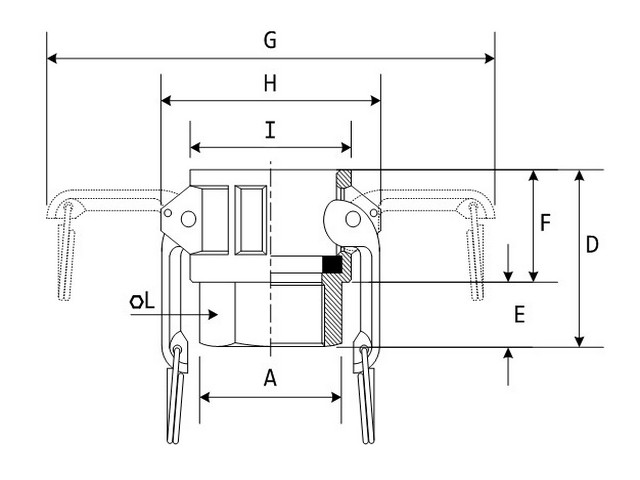

PP camlock coupling type D
Body materials: Polypropylene
Handle: stainless steel
Gaskets： Buna-N (NBR), EPDM
The thread of Camlock fittings are BSP, BSPT, NPT
SIZE：1/2″to 4″
Pressure:50-100 Psi( depending on size and temperature)
Operating temperature:-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method： Injection molding
The use and connection way of cam and groove couplings: Type D camlock can usually be used with the same size type A, type F, type E, type DP. (Dust Plug) To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
- Lightweight, convenient;
- Economical option;
- Good chemical resistance;
- Disconnect/connect without tools;
| Size | D | E | F | G | H | I |
|---|---|---|---|---|---|---|
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 1/2“ | 54 | 20 | 34 | 110 | 60.5 | 41 |
| 3/4“ | 54 | 20 | 34 | 110 | 60 | 41 |
| 1“ | 60.5 | 19.5 | 41 | 129 | 70 | 48 |
| 1-1/4“ | 73.5 | 22.5 | 51 | 182 | 89.5 | 69 |
| 1-1/2“ | 73.5 | 22.5 | 51 | 182 | 89.5 | 69 |
| 2“ | 82 | 27.5 | 54 | 191 | 98.7 | 82 |
| 3“ | 90 | 31.5 | 58.2 | 241.5 | 133 | 109 |
| 4″ | 92 | 34 | 58.5 | 274 | 159 | 143.3 |
PP camlock coupling type E
Body materials: Polypropylene
Gaskets： Buna-N (NBR), EPDM
The thread of Camlock fittings are BSP, BSPT, NPT
SIZE：1/2″to 4″
Pressure:50-100 Psi( depending on size and temperature)
Operating temperature:-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method： Injection molding
The use and connection way of cam and groove couplings: Type E Camlock can usually be used with type C, type D, type B, and type DC (Dust Cap) of the same size. To make a connection, simply slide the Camlock adapter into the Camlock coupling, and with normal hand pressure, press the cam levers down.
| Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 1/2“ | 14.5 | 3.5 | 8 | 75 | 44 | 31 |
| 3/4“ | 21 | 4 | 14 | 86 | 54 | 31 |
| 1“ | 26.5 | 4 | 19 | 95 | 57 | 38.5 |
| 1-1/4“ | 33.3 | 4.5 | 25 | 100 | 54 | 49 |
| 1-1/2“ | 39 | 5 | 30 | 108.5 | 60.5 | 48 |
| 2“ | 52 | 6 | 38.8 | 127 | 70 | 47 |
| 3“ | 78 | 7 | 64 | 151 | 89 | 59.5 |
| 4″ | 102 | 9 | 84.5 | 184 | 118 | 67 |
PP camlock coupling type F
Body materials: Polypropylene
Gaskets： Buna-N (NBR), EPDM
The thread of Camlock fittings are BSP, BSPT, NPT
SIZE：1/2″to 4″
Pressure:50-100 Psi( depending on size and temperature)
Operating temperature:-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method： Injection molding
The use and connection way of cam and groove couplings: Type F Camlock can usually be used with type B, type C, type D, and type DC (Dust Cap) of the same size. To make a connection, simply slide the Camlock adapter into the Camlock coupling, and with normal hand pressure, press the cam levers down.
| Size | C | D | E | F | H | I |
|---|---|---|---|---|---|---|
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 1/2“ | 14.5 | 57 | 38 | 27.5 | 42.5 | 21.5 |
| 3/4“ | 19 | 58 | 38 | 27.5 | 42.5 | 21.5 |
| 1“ | 23 | 61 | 46 | 33.5 | 50.5 | 23 |
| 1-1/4“ | 28 | 80.5 | 56 | 39 | 60 | 287 |
| 1-1/2“ | 36.5 | 77.6 | 55 | 43.3 | 69 | 36.5 |
| 2“ | 46 | 90 | 62 | 47 | 81.5 | 47 |
| 3“ | 72.5 | 96.5 | 67 | 52 | 114 | 72.5 |
| 4″ | 92 | 108.5 | 72 | 53.5 | 144 | 90 |
PP camlock coupling type DC
Body materials: Polypropylene
Handle: stainless steel
Gaskets： Buna-N (NBR), EPDM
The thread of Camlock fittings are BSP, BSPT, NPT
SIZE：1/2″to 4″
Pressure:50-100 Psi( depending on size and temperature)
Operating temperature:-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method： Injection molding
The use and connection way of cam and groove couplings: Type DC camlock can usually be used with the same size type A, type F, or type E. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
| Size | D | E | F | G | H | I |
|---|---|---|---|---|---|---|
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 1/2“ | / | / | / | / | / | / |
| 3/4“ | 44 | 9 | 35 | 109 | 60.3 | 41 |
| 1“ | 50 | 9 | 41 | 130 | 68 | 47 |
| 1-1/4“ | 67 | 21 | 46 | 109 | 60.2 | 57.5 |
| 1-1/2“ | 70 | 21 | 49 | 182 | 88.5 | 67.5 |
| 2“ | 72 | 18 | 54 | 191 | 99 | 82 |
| 3“ | 84 | 26 | 58 | 242 | 133.5 | 108.7 |
| 4″ | 84 | 25 | 59 | 270 | 158.3 | 142 |
PP camlock coupling type DP
Body materials: Polypropylene
Gaskets： Buna-N (NBR), EPDM
The thread of Camlock fittings are BSP, BSPT, NPT
SIZE：1/2″to 4″
Pressure:50-100 Psi( depending on size and temperature)
Operating temperature:-30-70°C (160°F)
When the temperature rises, the working pressure drops
Manufacture method： Injection molding
The use and connection way of cam and groove couplings: Type DP camlock can usually be used with type B, type C, and type D of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling, and with normal hand pressure, press the cam levers down.
| Size | D | F | H | I |
|---|---|---|---|---|
| (inch) | (mm) | (mm) | (mm) | (mm) |
| 1/2“ | 39 | 28 | / | 14 |
| 3/4“ | 39 | 28.8 | 32 | 21.5 |
| 1“ | 48 | 35 | 36.3 | 23 |
| 1-1/4“ | 57.5 | 40 | 45.4 | 28.5 |
| 1-1/2“ | 58 | 44 | 53 | 36.5 |
| 2“ | 66 | 49 | 62.5 | 44.3 |
| 3“ | 70 | 54.5 | 91.2 | 72.5 |
| 4″ | 73 | 54.5 | 118 | 93 |
