PVC Suction Hose
PVC Suction hoses are used in industrial and agricultural applications for pumping and transferring needs. They are used for transferring water from wells, dams, tanks to fields. Suitable for conveying liquid, powder, and granular material.
Alias: PVC suction hoses, Spiral Reinforced PVC Suction Hoses, water suction hoses with helix, PVC Suction and discharge hoses, PVC grit hoses.
The PVC suction hose is made from PVC (polyvinyl chloride) material, which offers durability, flexibility, and resistance to abrasion, chemicals, and weathering. It is reinforced with a helix, usually made of steel or PVC, to provide structural strength and prevent collapsing under vacuum or suction pressure.
- Tube: Flexible plasticized PVC – Smooth.
- Reinforcement: Rigid white PVC helix.
- Cover: Flexible plasticized PVC – Smooth & Corrugated
- Application: For Suction And Delivery Of Water, Mineral Water, Liquids, etc.Industries, Buildings, agriculture and constructions.
- Temp. Range. : – 5 ̊C to +60 ̊C (23°F to 140°F)
Specification of PVC Suction Hose – Smooth Cover
Flexible PVC Suction Hose is designed for the General purpose of suction and discharge of liquid fertilizer and granular materials. This hose is reinforced with a helical PVC stiffener. Its surface is smooth so can be easy to clamp. The clear hose calls part for full visual flow monitoring.PVC suction hose is a type of hose designed specifically for suction applications, where the hose is used to extract or draw in fluids, liquids, or materials. It is commonly used in industries such as agriculture, construction, mining, and manufacturing. This type of hose is used for a wide range of suction applications, including water, slurry, mud, debris, and other liquids or materials. It is often employed for tasks such as irrigation, dewatering, drainage, pumping, and transfer of liquids in various industries.
| Part No. | Size | I.D. | Thickness | Length | W.P. | Bend Radius | Weight | |
|---|---|---|---|---|---|---|---|---|
| # | Inch | mm | mm | m/coil | Bar | PSI | mm | kg/m |
| SHS1925 | 3/4″ | 19 | 3 | 50/30 | 5 | 75 | 70 | 0.28 |
| SHS2531 | 1″ | 25 | 3 | 50/30 | 5 | 75 | 70 | 0.35 |
| SHS3238 | 1-1/4″ | 32 | 3 | 50/30 | 5 | 75 | 90 | 0.46 |
| SHS3845 | 1-1/2″ | 38 | 3.5 | 50/30 | 5 | 75 | 110 | 0.62 |
| SHS4350 | 1-3/4″ | 43 | 3.5 | 50/30 | 5 | 75 | 120 | 0.70 |
| SHS5058 | 2″ | 50 | 4 | 50/30 | 5 | 75 | 150 | 0.95 |
| SHS6371 | 2-1/2″ | 63 | 4 | 50/30 | 4 | 60 | 180 | 1.20 |
| SHS7684 | 3″ | 76 | 4 | 50/30 | 4 | 60 | 220 | 1.56 |
| SHS8897 | 3-1/2″ | 88 | 4.5 | 50/30 | 4 | 60 | 250 | 1.71 |
| SHS100111 | 4″ | 100 | 5.5 | 50/30 | 4 | 60 | 330 | 2.30 |
| SHS113124 | 4-1/2″ | 113 | 5.5 | 50/30 | 4 | 60 | 400 | 2.80 |
| SHS125136 | 5″ | 125 | 5.5 | 50/30 | 3 | 45 | 500 | 3.18 |
| SHS150162 | 6″ | 150 | 6 | 30/10 | 3 | 45 | 700 | 4.10 |
| SHS200216 | 8″ | 200 | 8 | 12/10 | 2.5 | 40 | 1100 | 6.90 |
Specification of PVC Suction Hose – Corrugated Cover
| Part No. | Size | I.D. | Thickness | Length | W.P. | Bend Radius | Weight |
|---|---|---|---|---|---|---|---|
| # | Inch | mm | mm | m/coil | Bar | mm | kg/m |
| SHSC1925 | 3/4″ | 19 | 3 | 50/30 | 4 | 50 | 0.28 |
| SHSC2531 | 1″ | 25 | 3 | 50/30 | 4 | 50 | 0.22 |
| SHSC3137 | 1-1/4″ | 31 | 3 | 50/30 | 4 | 90 | 0.27 |
| SHSC3846 | 1-1/2″ | 38 | 4 | 50/30 | 3 | 115 | 0.41 |
| SHSC4350 | 1-3/4″ | 43 | 3.5 | 50/30 | 3 | 120 | 0.60 |
| SHSC5059 | 2″ | 50 | 4.5 | 50/30 | 5 | 150 | 0.65 |
| SHSC6273 | 2-1/2″ | 62 | 5.5 | 50/30 | 4 | 180 | 0.90 |
| SHSC7688 | 3″ | 76 | 6 | 50/30 | 4 | 220 | 1.26 |
| SHSC8897 | 3-1/2″ | 88 | 4.5 | 50/30 | 4 | 230 | 1.61 |
| SHSC101117 | 4″ | 101 | 5.5 | 50/30 | 4 | 280 | 2.02 |
| SHSC113124 | 4-1/2″ | 113 | 5.5 | 50/30 | 4 | 350 | 2.72 |
| SHSC125142 | 5″ | 125 | 8.5 | 30/20 | 3 | 500 | 3.27 |
| SHSC152171 | 6″ | 152 | 9.5 | 20/10 | 3 | 600 | 4.05 |
| SHSC203229 | 8″ | 203 | 13 | 12/10 | 2.5 | 700 | 7.20 |

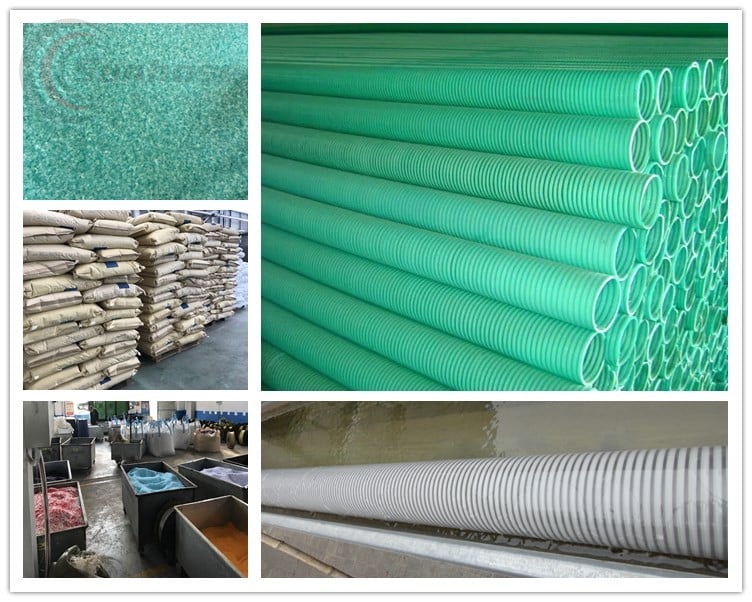

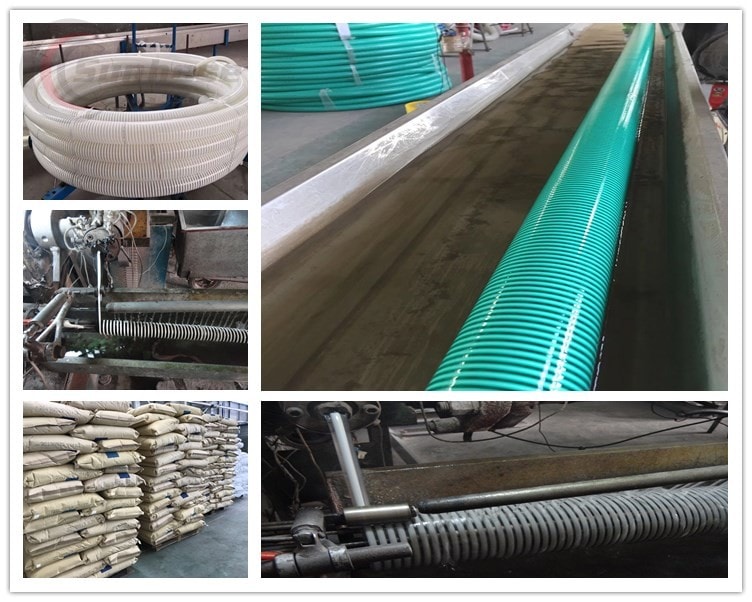

Material and Production of PVC Suction Hose

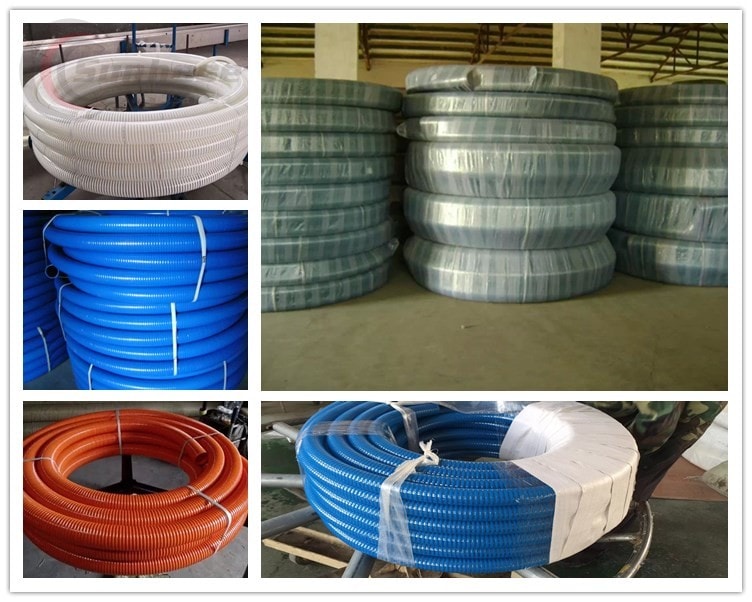

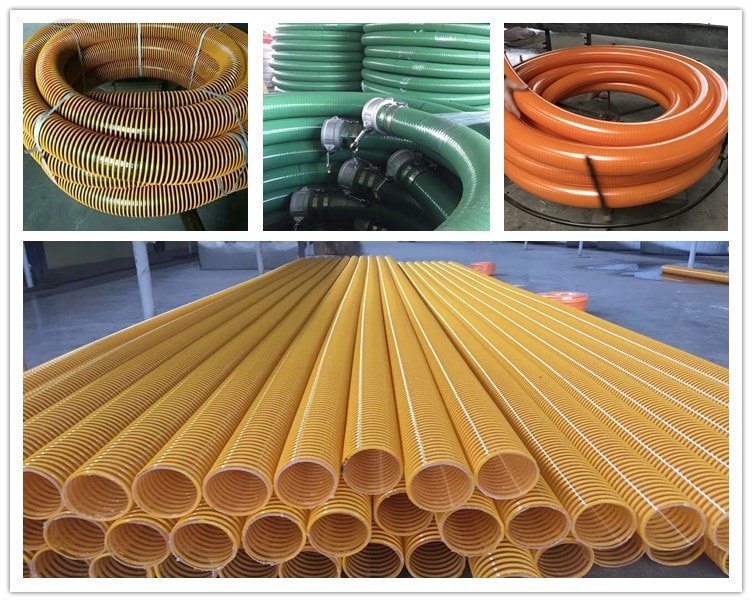

Package Style of Spiral Reinforced PVC Suction Hose
