What is Heavy Duty PVC Fabric Reinforced Suction Hose Corrugated?
Heavy Duty PVC Fabric Reinforced Suction Hose Corrugated is a pvc hose supplied by Sunhose for industrial hose applications.
- Material / Category
- PVC Hose
- Typical applications
- Contact Sunhose to confirm the intended application.
- Buyer checks
- Diameter, working pressure, temperature, length, quantity and destination market.
Heavy Duty PVC Fabric Reinforced Suction Hose Corrugated Sourcing Notes
Corrugated PVC fabric reinforced suction hose for fish suction, water transfer, construction pumps, agriculture, and wastewater handling where flexibility and strength are both needed.
This page is prepared for hose importers, distributors, and project buyers who need to compare pvc hose options before requesting a quotation.
Typical selection points include application, working pressure, hose diameter, roll length, color, packing, and destination port.

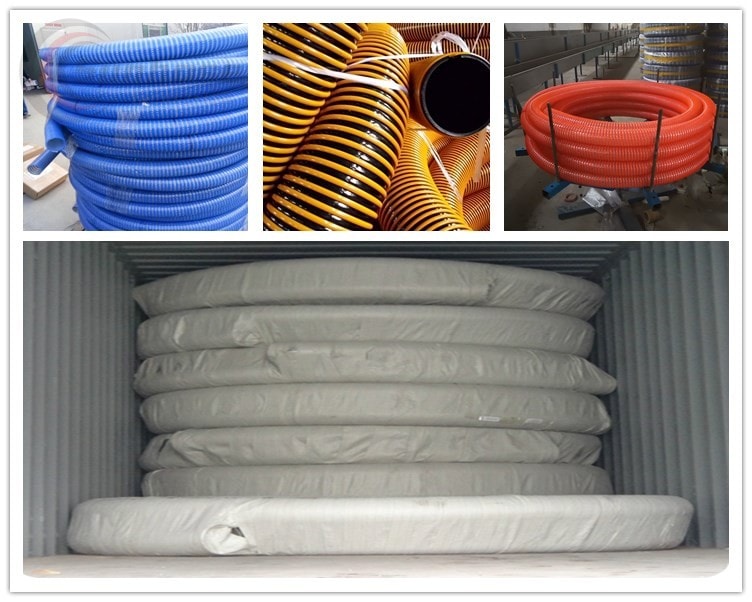

Heavy Duty PVC Fabric Reinforced Suction Hose Corrugated
Heavy Duty PVC Fabric Reinforced suction hoses are called by many different names. Such as Spiral Reinforced PVC Suction Hoses, water suction hoses with orange helix, PVC Suction, and discharge hoses, and Orange PVC grit hoses. Heavy Duty fabric reinforced suction hose for fish suction and transfer with a clear visual flow. Also heavy-duty water suction and transfer for rental, construction, and trash pumps. A heavy-duty PVC fabric-reinforced suction hose with a corrugated design is a specialized hose used for suction applications that require durability and strength. This type of hose is commonly used in industries such as agriculture, construction, mining, and wastewater management.
- Tube: Flexible PVC clear tube.
- Reinforcement: Polyester Braid reinforced with an orange PVC helix
- Cover: Rigid orange PVC right-handed helix.
- Application: For heavy-duty water suction and discharge, fish suction, and transfer.
- Temp. Range. : – 5 ̊C to +60 ̊C (23°F to 140°F)
Specification of Heavy Duty PVC Fabric Reinforced Suction Hose
Heavy Duty PVC Fabric Reinforced Suction & Discharge Hose used for Fish suction, Water suction – heavy-duty, Rental and construction dewatering, Irrigation lines Pumps, Trash, Suction and discharge.
Fabric Reinforcement – Designed with high tensile strength polyester yarn jacket to handle both suction and higher pressure discharge applications.
Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow.
Easy Slide Helix – Rigid helix design protects hose tube from cover wear, and allows the hose to slide easily over rough surfaces. Easy-to-handle.
The heavy-duty PVC fabric-reinforced suction hose is designed to withstand demanding conditions, including abrasion, harsh weather, and rugged environments. It is capable of maintaining its shape and structure even under negative pressure or high vacuum situations. The corrugated design further improves the hose’s flexibility, allowing it to navigate around obstacles and corners with ease.
| Part No. | Size | I.D. | Thickness | Length | W.P. | Bend Radius | Weight |
|---|---|---|---|---|---|---|---|
| # | Inch | mm | mm | m/coil | PSI | mm | kg/m |
| SHSF5166 | 2″ | 51 | 4 | 30 | 100 | 250 | 1.20 |
| SHSF6374 | 2-1/2″ | 63 | 4 | 30 | 100 | 300 | 1.40 |
| SHSF7692 | 3″ | 76 | 4 | 30 | 92 | 300 | 2.20 |
| SHSF102121 | 4″ | 102 | 4.5 | 30 | 90 | 400 | 3.10 |
| SHSF127152 | 5″ | 127 | 5 | 30 | 60 | 600 | 4.50 |
| SHSF154180 | 6″ | 154 | 5.3 | 6/12 | 50 | 750 | 5.80 |
| SHSF203232 | 8″ | 203 | 6.5 | 12/10 | 50 | 950 | 8.50 |
Thickness means soft PVC.

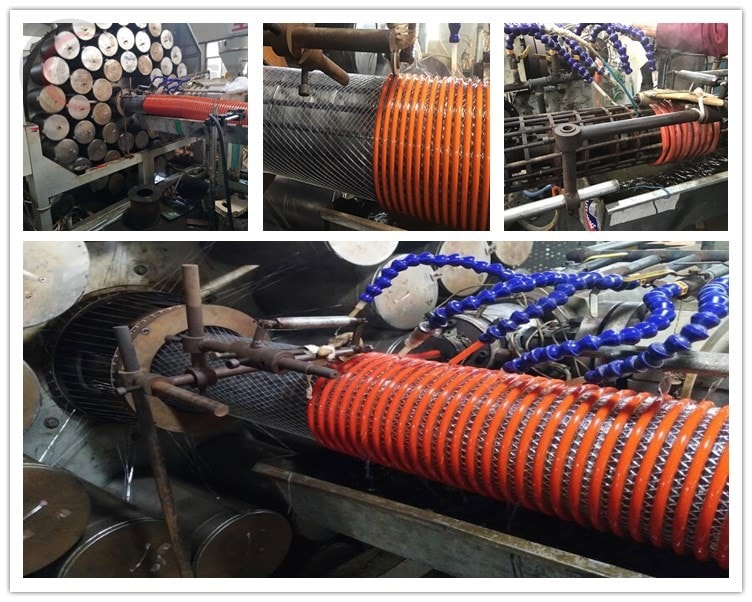

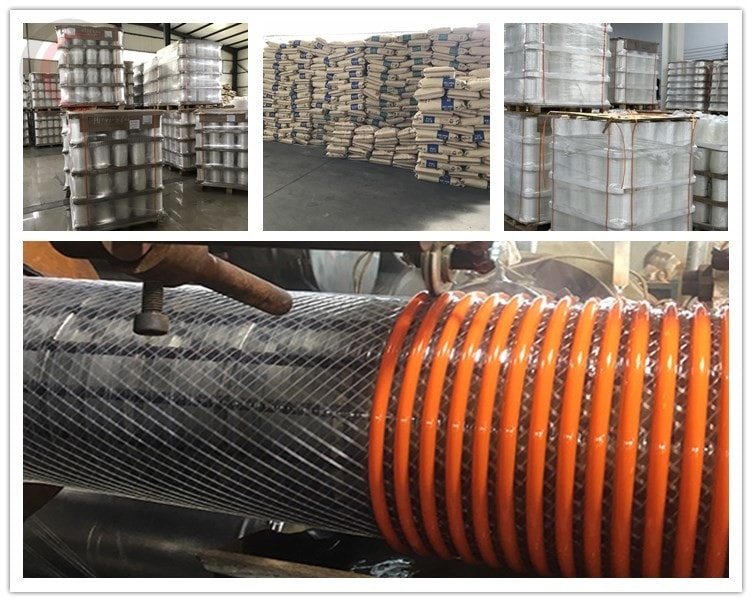

Material and Production of Heavy Duty PVC Fabric Reinforced Suction Hose

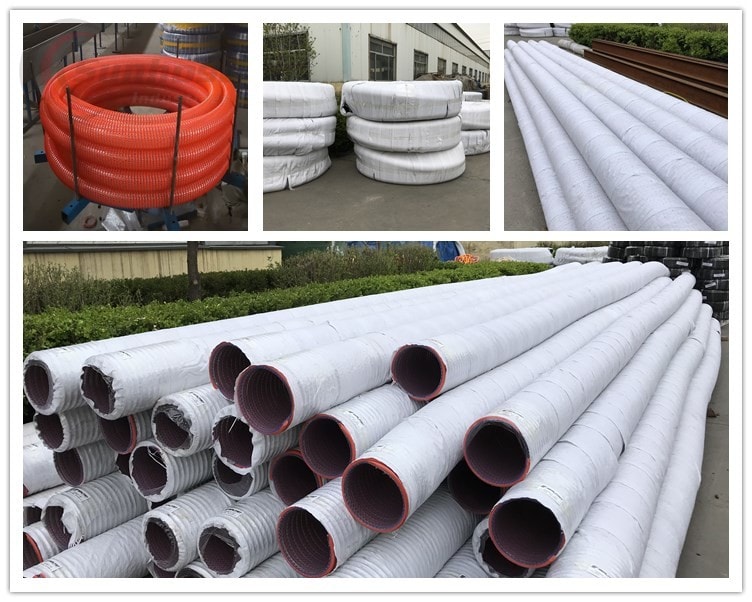

Package Style of Heavy Duty PVC Fabric Reinforced Suction & Discharge Hose
