What is Hydraulic Hose DIN EN 856 4SH?
Hydraulic Hose DIN EN 856 4SH is a hydraulic hose supplied by Sunhose for industrial hose applications.
- Material / Category
- Hydraulic Hose
- Typical applications
- Contact Sunhose to confirm the intended application.
- Buyer checks
- Diameter, working pressure, temperature, length, quantity and destination market.
Hydraulic Hose DIN EN 856 4SH Sourcing Notes
DIN EN 856 4SH hydraulic hose for very high-pressure hydraulic systems, spiral reinforcement, and demanding equipment service. Confirm size, pressure, and assembly needs.
This page is prepared for hose importers, distributors, and project buyers who need to compare hydraulic hose options before requesting a quotation.
Typical selection points include application, working pressure, hose diameter, roll length, color, packing, and destination port.
Hydraulic Hose DIN EN 856 4SH
Hydraulic Hose DIN EN 856 4SH very high pressure, pulsating applications used for petroleum-based hydraulic fluids. Wire wrapped in alternating directions, and oil and weather-resistant synthetic rubber cover.4sh high-pressure hose.
The Hydraulic Hose DIN EN 856 4SH is a type of hydraulic hose that conforms to the DIN EN 856 4SH standard. This standard specifies the requirements for high-pressure hydraulic hoses used in demanding applications. The hose is designed to withstand extreme pressures and provide efficient transmission of hydraulic power.
The designation “DIN EN 856 4SH” refers to the German Institute for Standardization (DIN) standard and the European Norm (EN) standard that govern hydraulic hoses. DIN EN 856 4SH outlines the construction, performance, and compatibility of the hose with hydraulic fluids, ensuring its reliability and performance in high-pressure hydraulic systems.
- Tube: Oil-resistant synthetic rubber.
- Reinforcement: Four alternating layers of spiraled high-tensile steel wire.
- Cover: Abrasion and weather-resistant synthetic rubber.
- Application: Very high pressure, pulsating applications used for petroleum-based hydraulic fluids.
- Temp. Range. : -40°C To +100°C (-40°F To +212°F)
Specification of Hydraulic Hose DIN EN 856 4SH
Hydraulic Hose DIN EN 856 4SH High-pressure hose with four layers of high tensile steel wire. This product can be used for hydraulic systems of ultrahigh pulsating pressure with high-temperature working fluids for oil-based.
The DIN EN 856 4SH hydraulic hose is commonly used in heavy-duty hydraulic systems found in industries such as construction, mining, and agriculture. It is capable of handling extremely high hydraulic pressures and effectively transmitting hydraulic power between various components, including pumps, valves, cylinders, and motors.
When selecting this hydraulic hose, it is important to consider factors such as the required hose size (diameter), pressure rating, temperature range, and compatibility with hydraulic fluids used in the system. Adhering to manufacturer guidelines and industry standards for hose installation, routing, and maintenance is crucial to ensure optimal performance and longevity.
| Part No. | SIZE | SAE | I.D | W.D | O.D | W. P | P.P | B.P | min B.R | W.T | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| # | mm | inch | Dash | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| SH4SH19 | 19 | 3/4″ | -12 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 11.02 | 280 | 1.70 |
| SH4SH25 | 25 | 1″ | -16 | 25 | 26.4 | 34.4 | 36 | 37.5 | 39.9 | 38 | 5510 | 76 | 11020 | 152 | 22040 | 13.39 | 340 | 2.50 |
| SH4SH32 | 31.5 | 1-1/4″ | -20 | 31.4 | 33 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 4710 | 65 | 9425 | 130 | 18850 | 18.11 | 460 | 3.00 |
| SH4SH38 | 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 47.8 | 49.8 | 51.9 | 55.1 | 29 | 4205 | 58 | 8410 | 116 | 16820 | 22.05 | 560 | 3.60 |
| SH4SH51 | 51 | 2″ | -32 | 50.4 | 52 | 62.2 | 64.2 | 66.5 | 69.7 | 25 | 3625 | 50 | 7250 | 100 | 14500 | 27.56 | 700 | 5.00 |

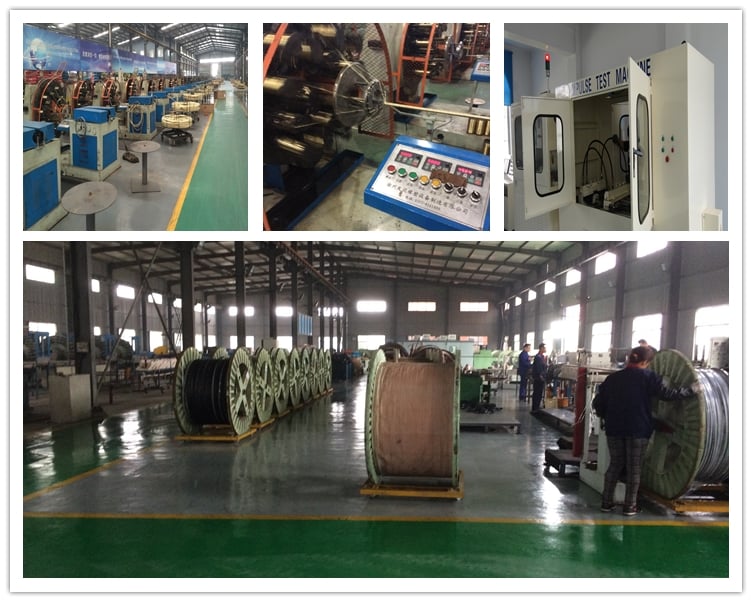

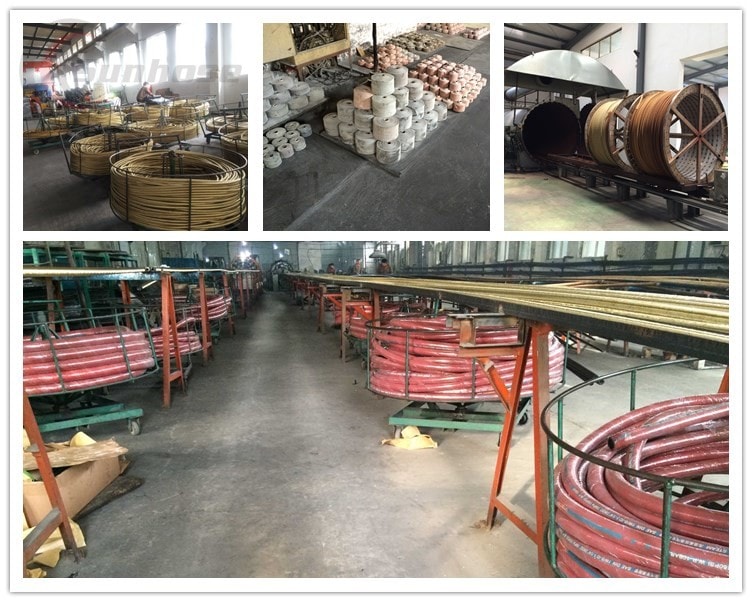

Material and Production of Hydraulic Hose DIN EN 856 4SH

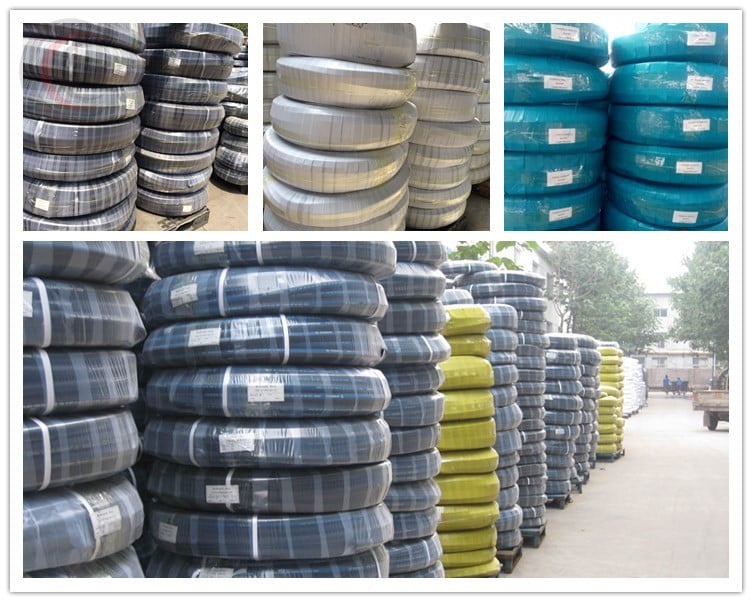

Package Style of Hydraulic Hose DIN EN 856 4SH
