What is TPU Layflat Hose?
TPU Layflat Hose is a layflat hose supplied by Sunhose for Mining water discharge, Oilfield transfer, Agriculture irrigation.
- Material / Category
- Layflat Hose
- Typical applications
- Mining water discharge, Oilfield transfer, Agriculture irrigation
- Buyer checks
- Diameter, working pressure, temperature, length, quantity and destination market.
TPU Layflat Hose Sourcing Notes
TPU layflat hose with high-tenacity fiber reinforcement for abrasion-resistant water transfer, dewatering, and demanding field applications where long service life is important.
This page is prepared for hose importers, distributors, and project buyers who need to compare layflat hose options before requesting a quotation.
Typical selection points include application, working pressure, hose diameter, roll length, color, packing, and destination port. Common application references include Mining water discharge, Oilfield transfer, Agriculture irrigation. Key product considerations include High abrasion resistance, Excellent tensile strength, Compact roll storage.

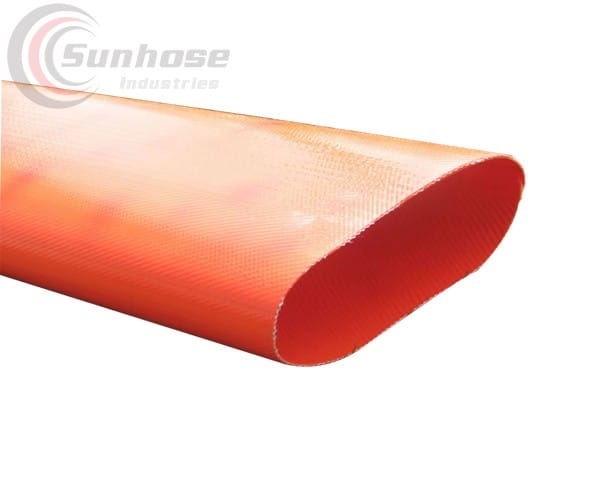

TPU Layflat Hose
TPU Hose, TPU Layflat hose is made from extruded thermoplastic polyester-based polyurethane (TPU) with excellent wear & tear properties. The reinforcement of the TPU Fracking Hose is made from circular woven filament polyester yarn. A TPU layflat hose is a type of hose specifically designed for water transfer and discharge applications. It is constructed using TPU (thermoplastic polyurethane) material, which provides excellent durability, flexibility, and resistance to abrasion and chemicals. TPU layflat hoses are commonly used in industries such as agriculture, construction, mining, and irrigation.
- Tube: Thermoplastic polyether-based polyurethane (TPU).
- Reinforcement: Circular woven filament polyester yarn.
- Cover: Thermoplastic polyurethane (TPU).
- Application: For fire-fighting, shipping, petroleum, Chemical industry, Agriculture, Mining. Transfer of chemicals, oil & fuel, abrasive substances, potable water, or transfer over the highly abrasive ground.
- Temp. Range. : – 46 ̊C to +80 ̊C (-50.8°F to 176°F)
Specification of TPU Layflat Discharge Hose
TPU layflat hoses are known for their lightweight nature and easy handling. They are designed to be flat when not in use, allowing for compact storage and transportation. When water is pumped through the hose, it expands and becomes rigid, enabling efficient water transfer over long distances. One of the key advantages of TPU layflat hoses is their high tensile strength, allowing them to withstand high-pressure applications. They are reinforced with synthetic fibers or polyester yarns, providing additional strength and preventing the hose from bursting or collapsing under pressure. TPU hoses can handle both low and high-pressure water transfer tasks. TPU layflat hoses offer excellent resistance to punctures, abrasion, and UV rays, making them suitable for use in demanding outdoor environments. They have a smooth inner surface that minimizes friction and ensures efficient water flow. The hoses are also resistant to mildew and mold, allowing for long-term use in wet conditions.
| Part No. | Size | I.D. | Working Pressure | Burst Pressure | Thickness | Weight | Length | ||
|---|---|---|---|---|---|---|---|---|---|
| # | Inch | mm | Bar | PSI | Bar | PSI | mm | kg/m | m/coil |
| SHPU0025 | 1″ | 25+1.5 | 10/16 | 150/240 | 30/48 | 450/720 | 2.5-3.0 | 0.20-0.30 | 20-200 |
| SHPU0051 | 2″ | 51+1.5 | 10/16 | 150/240 | 30/48 | 450/720 | 2.5-3.0 | 0.29-0.55 | 20-200 |
| SHPU0063 | 2-1/2″ | 63.5+1.5 | 10/16 | 150/240 | 30/48 | 450/720 | 2.5-3.0 | 0.45-0.75 | 20-200 |
| SHPU0076 | 3″ | 76+2.0 | 10/16 | 150/240 | 30/48 | 450/720 | 2.8-3.5 | 0.60-1.00 | 20-200 |
| SHPU0102 | 4″ | 102+2.0 | 16/20/28 | 240/300/420 | 48/60/84 | 720/900/1260 | 4.5-5.0 | 1.00-1.80 | 20-200 |
| SHPU0127 | 5″ | 127+2.0 | 16 | 240 | 48 | 720 | 4.5-5.0 | 1.20-2.00 | 20-200 |
| SHPU0152 | 6″ | 152+2.0 | 16/28/42 | 240/420/630 | 48/84/84 | 720/1260/1260 | 3.9-5.5 | 2.0-4.0 | 20-200 |
| SHPU0203 | 8″ | 203+2.0 | 16/20 | 240/300 | 48/60 | 720/900 | 3.8-4.5 | 3.0-4.2 | 20-200 |
| SHPU0254 | 10″ | 254+3.0 | 13/16 | 195/240 | 39/48 | 585/720 | 4.6-5.5 | 4.2-6.0 | 20-200 |
| SHPU0305 | 12″ | 305+3.0 | 10/13 | 150/195 | 30/39 | 450/585 | 4.4-5.5 | 4.4-6.2 | 20-200 |
| SHPU0356 | 14″ | 356+4.0 | 5 | 75 | 15 | 225 | 3.5-4.0 | 3.5-4.3 | 20-200 |

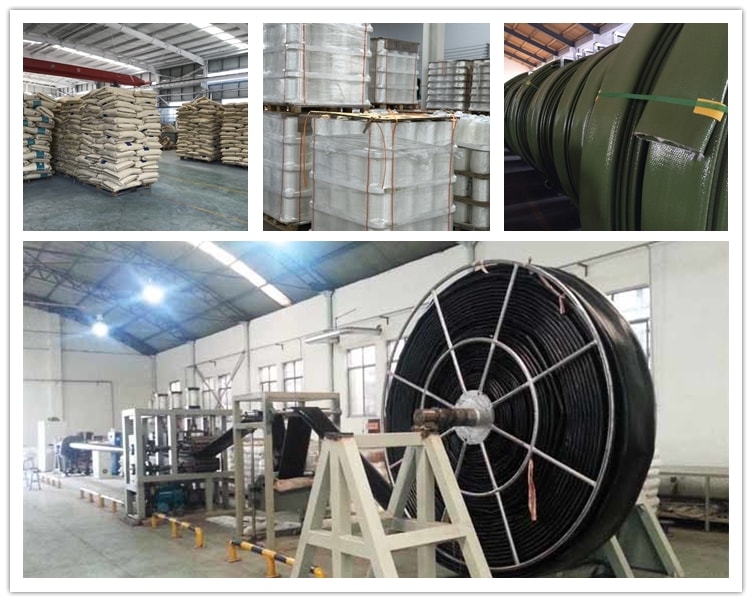

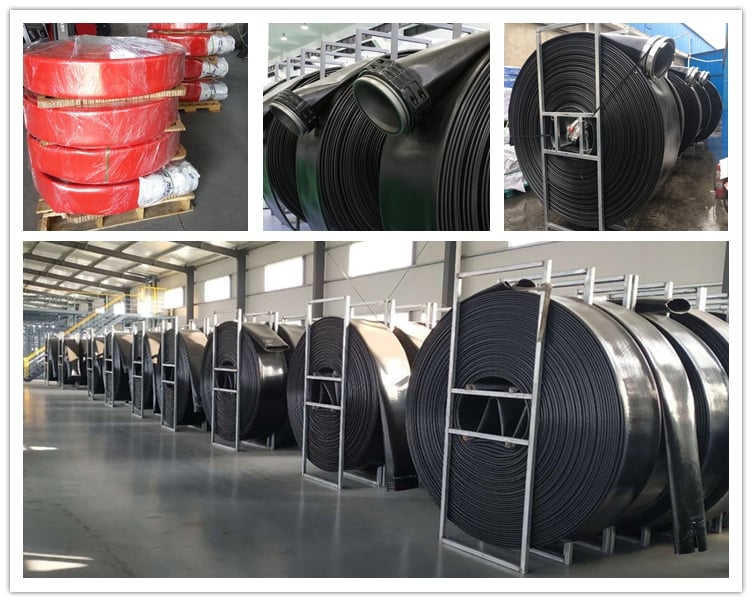

Material and Production of TPU Layflat Discharge Hose

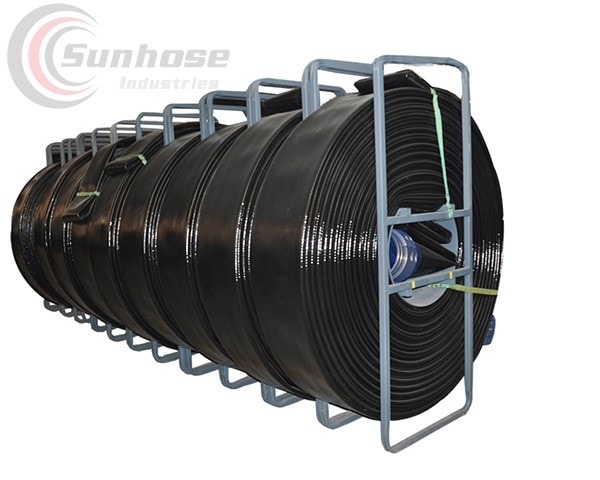

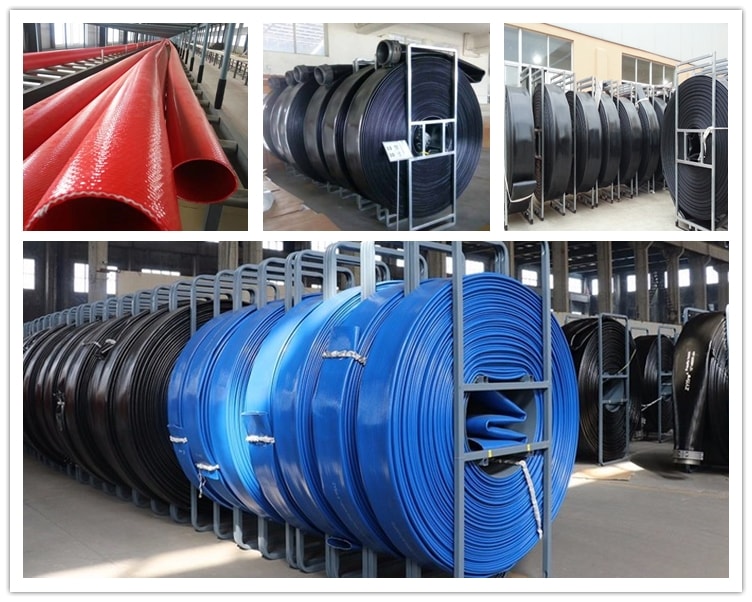

Package Style of PU Layflat Hose
